Product Description

* Aluminium frame width 163 mm.
*Thermal break system or Non-thermal break system is optionable
* Designed as three track sliding stack door.
* Heavy duty rollers can be invited to make big panel doors
* Powder-coated aluminium in all RAL color.
* Available in double glazing, 6mm glass to 24mm,toughened glass or laminated safety glass.

Optional Features
* Available in twin and triple track options
* With or without fiber mosquito screen.
* EPDM gasket or sealant optional.

General description:

Aluwin AL163 stacking doors can be installed in different rooms of a building. This could be used as patio or terrace doors leading into the garden. Seriously consider utilizing this, if you are planning to have your home remodeled. Opting for these aluminum doors can save you lot of money and installation hassles.This sliding door is a perfect solution to maximise your view out of your living or office space and give your home a stunning look.

Tech Specs

Product Detail

* Aluminium alloy 6063-T5, high tech profile and renforce material
*High quality glass fiber thermal break insulation bar with high loading capacity
*10-15 years warranty in powdercoating surface treatment

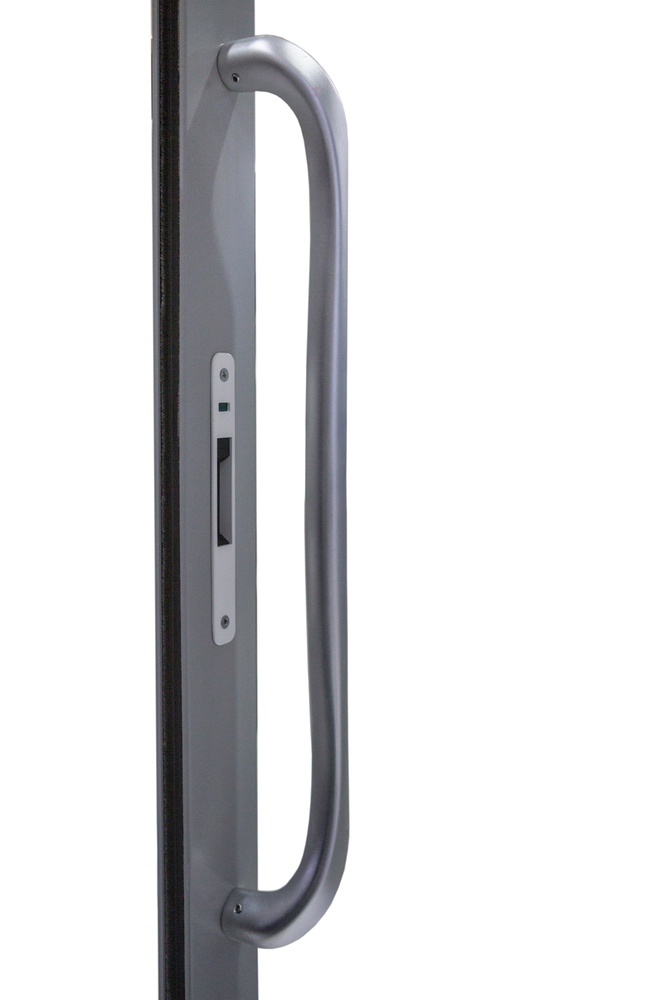

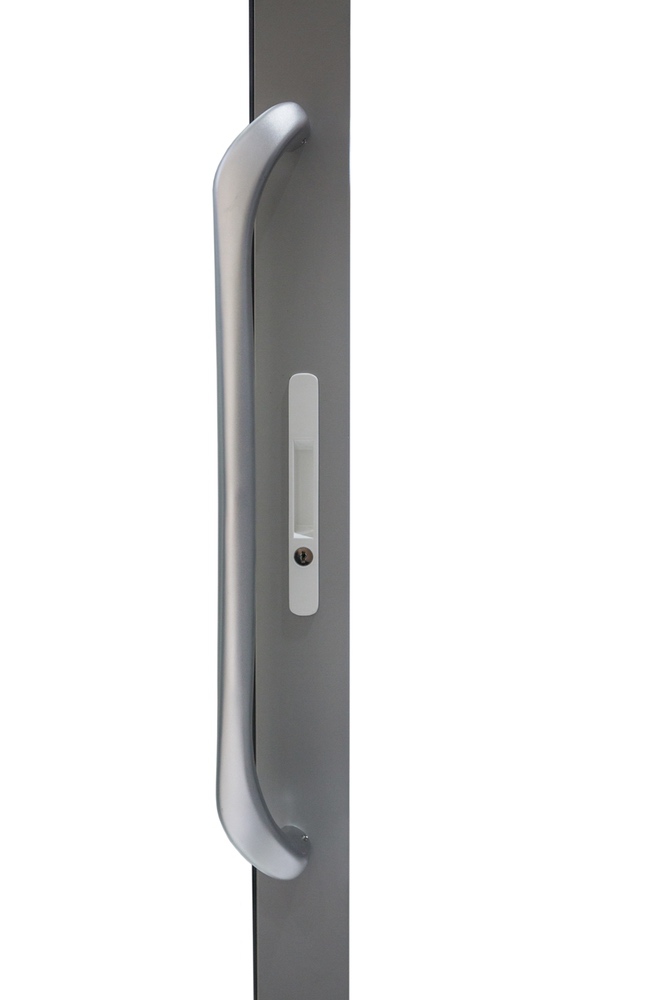

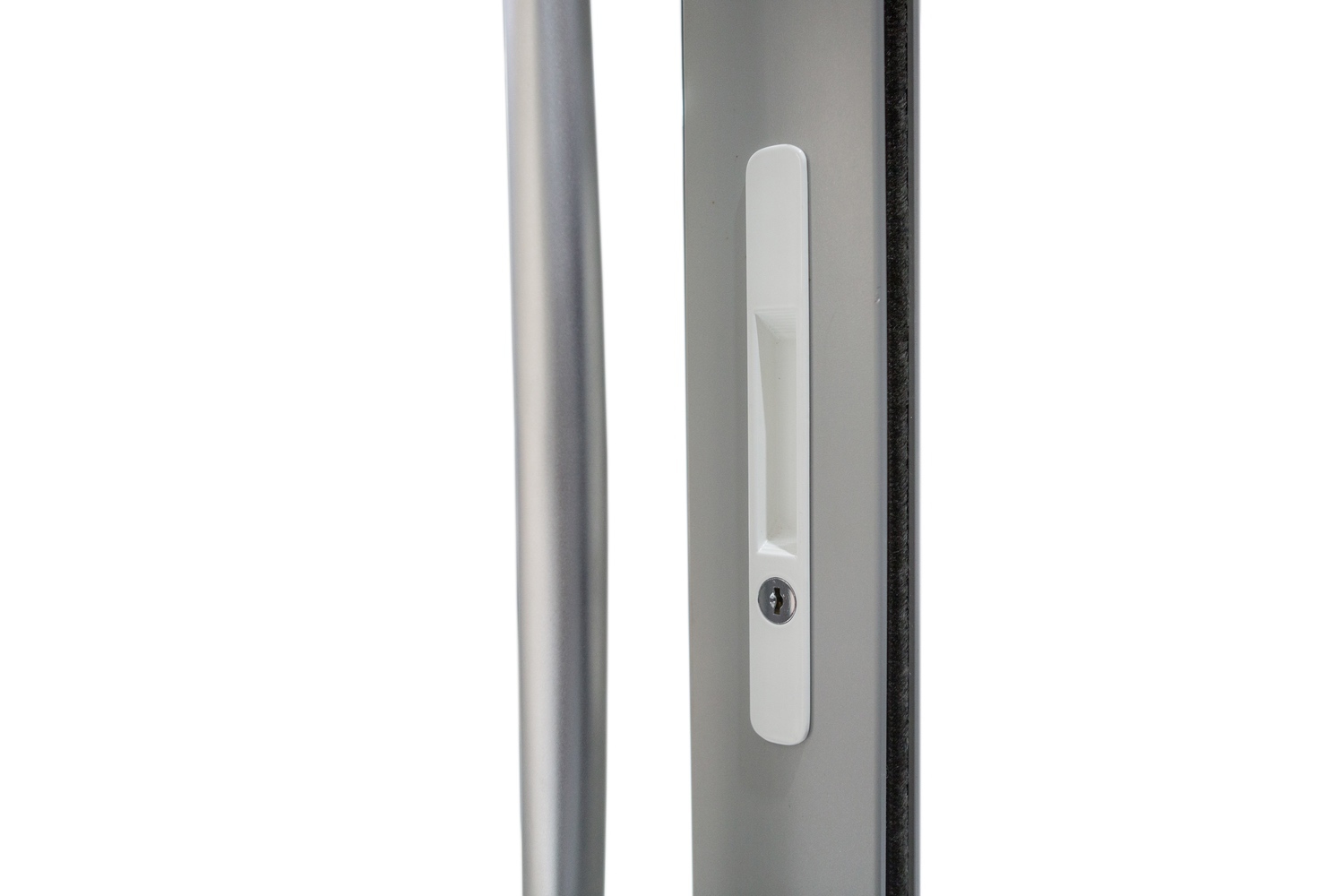

*Multi-point hardware lock system for weather sealing and burglarproofing
*Corner locking key ensures the smooth surface joint and improves corner stability
*Glass panel EPDM foam weather sealing strip used for better performance and easier maintenance than standard glue



Surface Treatment: Customized (Powder coated/ Electrophoresis/ Anodizing etc).

Color: Customized (White, black, silver etc any color is available by INTERPON or COLOR BOND).

Aluminium three track sliding door(AL163)



Specifications Of Glass

1. Single Glazing: 4/5/6/8/10/12/15/19mm Etc

2. Double Glazing: 5mm+12a+5mm ,6mm+12a+6mm ,8mm+12a +8mm,can be Sliver Or Black Spacer

3. Laminated Glazing: 3mm+0.38pvb+3mm, 5mm+0.76pvb+5mm, 6mm+1.14pvb+6mm
Tempered ,clear, Tinted, Low-E, Reflective, Forsted.

4. With AS/nzs2208, As/nz1288 Certification


Aluminium three track sliding door(AL163)



Specifications of Screen

1. Stainless Steel 304/316

2. Firber Screen


Aluminium three track sliding door(AL163)


Specifications of Hardware

1.China top Kinlong hardware
2.America CMECH hardware
3.German Hoppe hardware
4.China top PAG Hardware
5.German SIEGENIA hardware
6.German ROTO hardware
7.German GEZE hardware
8.Aluwin choose seriously hardwares&accessories for customers with 10 years warranty

Aluminium three track sliding door(AL163)

Why Choose Us

Customized - we are aluminium manufacturer with over 15 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.


Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.


System design -Based on the clients’ and market’s requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
