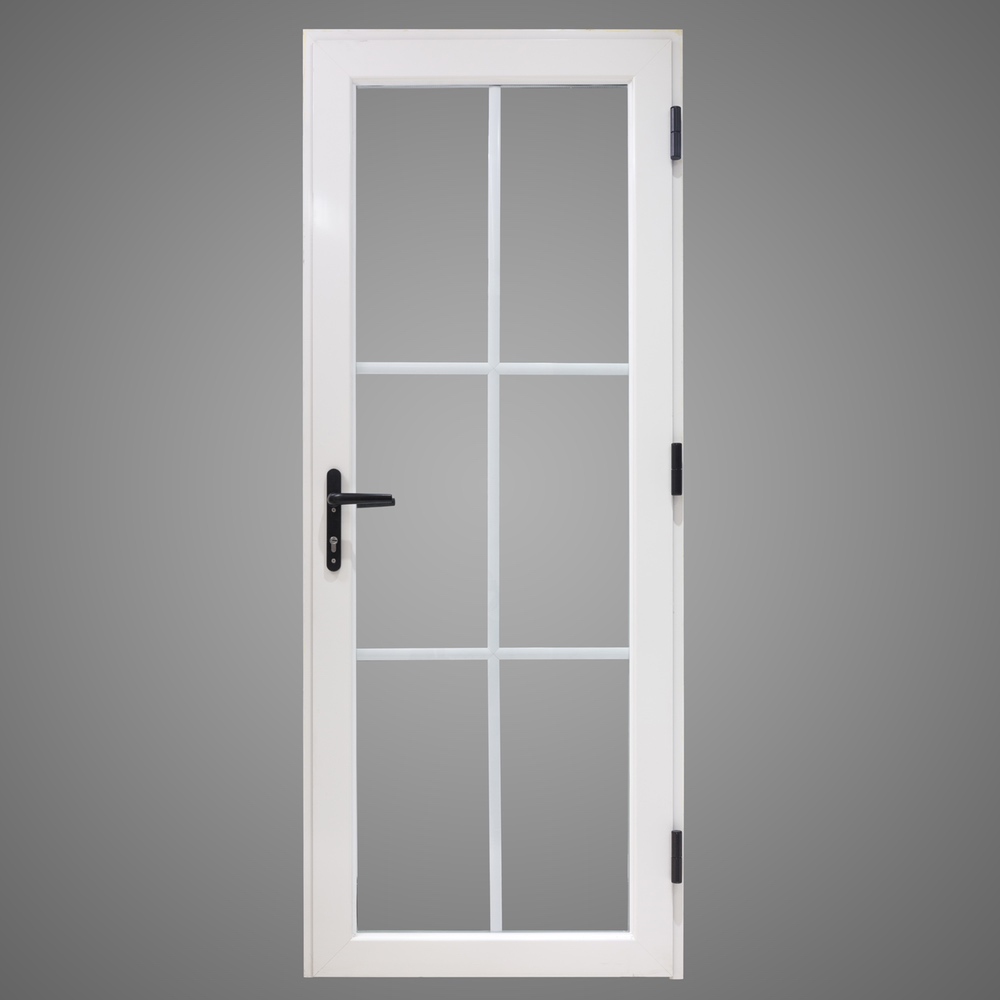

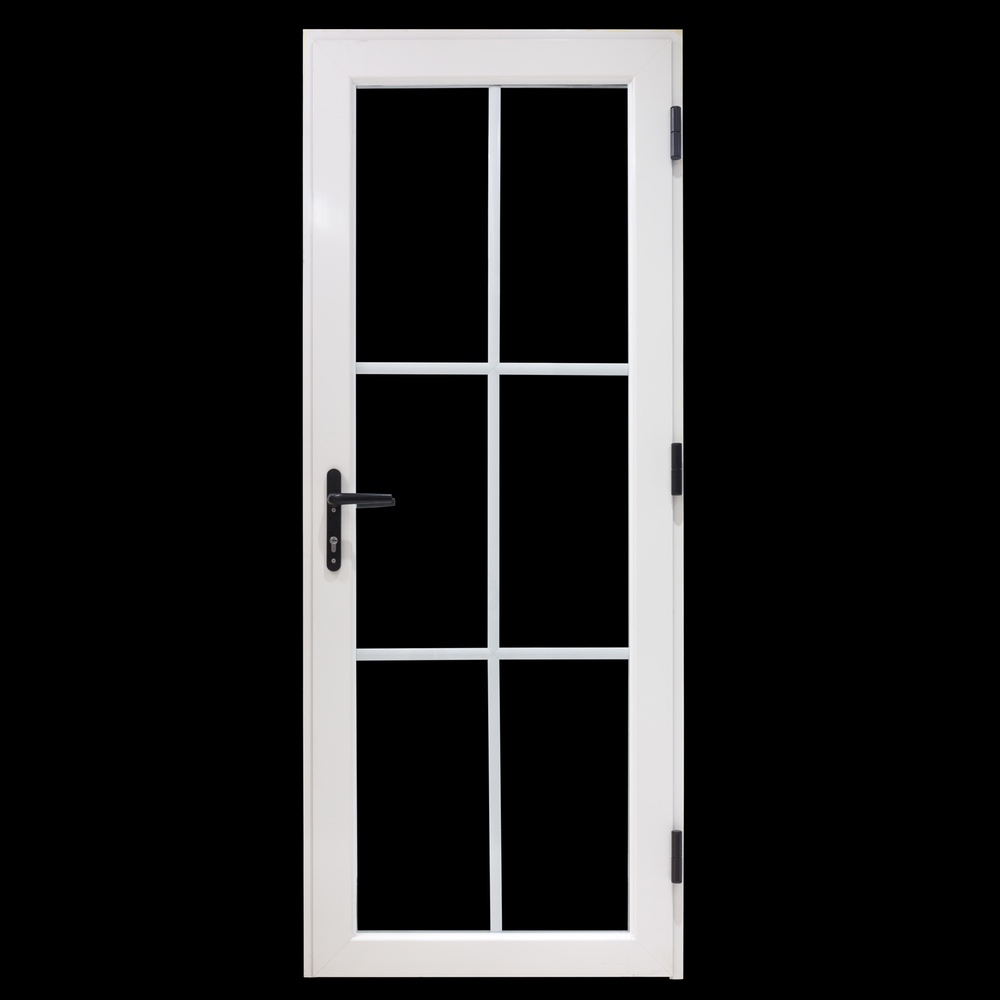

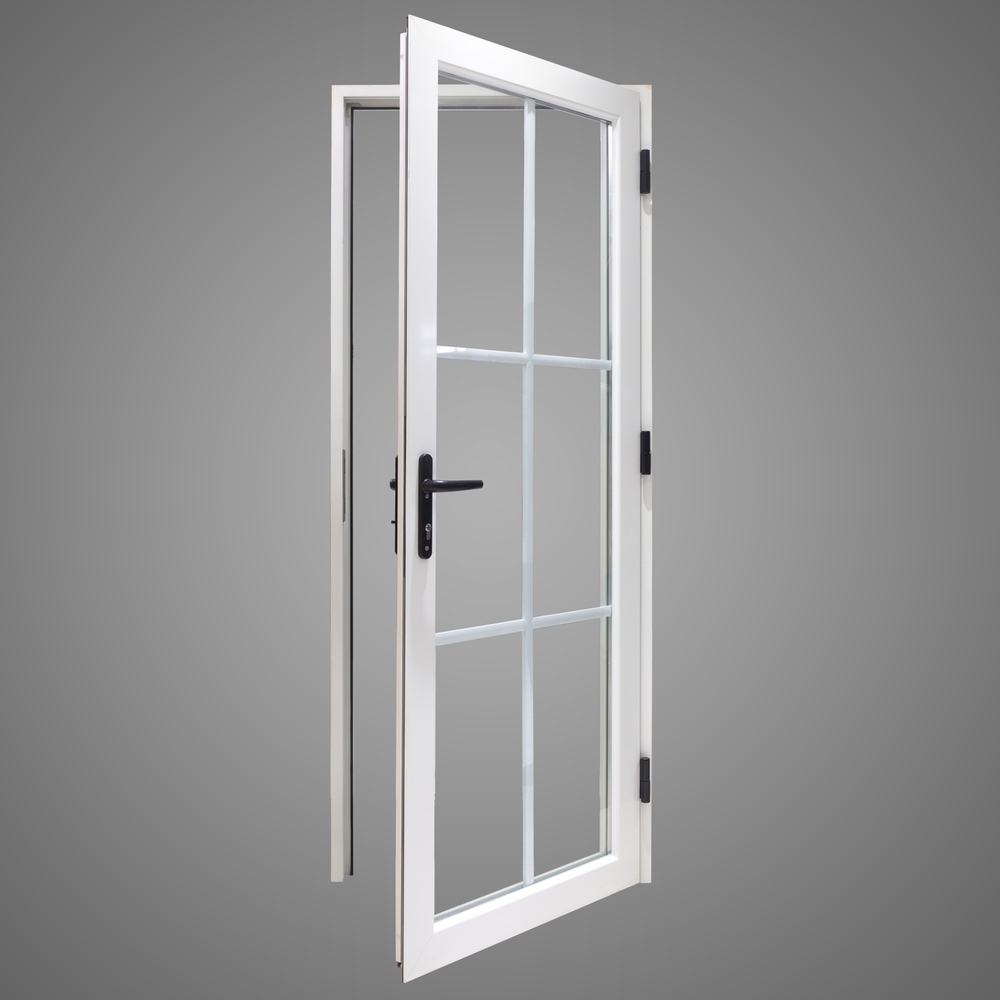

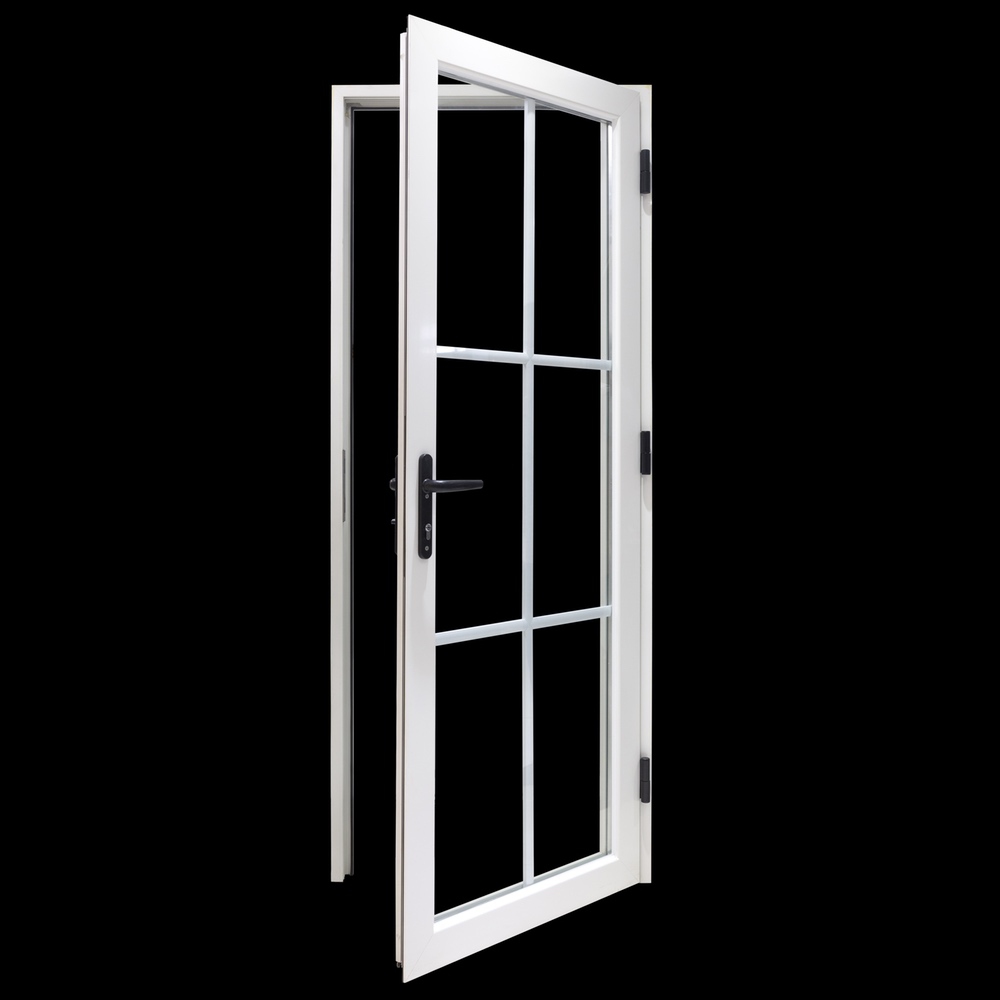

Aluminium casement door(AL130)
Aluminium casement door(AL130)
Aluminium casement door(AL130)
Aluminium casement door(AL130)
Aluminium casement door(AL130)
Aluminium casement door(AL130)
Aluminium casement door(AL130)
Aluminium casement door(AL130)

Aluminium casement door(AL130)

Product Description

* Aluminium frame width 130mm.

*Thermal break profile system

* Can be producted as single doors or french doors

* Available in powder-coated in all RAL color or anodised silver, black, brown

* Available in standard 5mm+9A+5mm doulbe glass, toughened glass or laminated safety glass.

*Grid inside double glazing is Available


 Optional Features

* EPDM gasket or sealant optional.

* Optional single or double glasses

* Open inwards or outwards optional

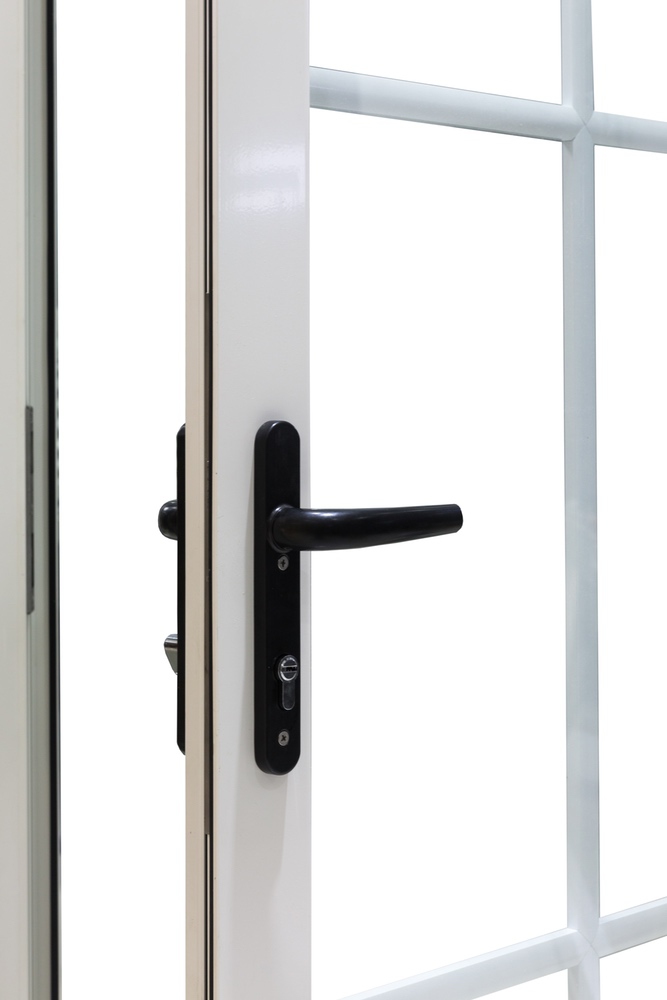

* Choice of high-end door handles ,Chinese Top quality or Germany brand

General description:

The most popular type of door, hinged aluminum doors can open inward or outward and are attached to the door frame on either the left or right side. This device is adaptable and can be utilized as a household entrance door in a business or office setting. The product’s flexibility enables the door to be inserted into a bigger shopfront piece. The product may also include sidelights and fittings.

Tech Specs

Product Detail

* Aluminium 6063-T5, a high-tech material for profiles and reinforcement.
*High quality glass fiber thermal break insulation bar with high loading capacity
*15 to 20 years of warranty on powder coating surface treatment

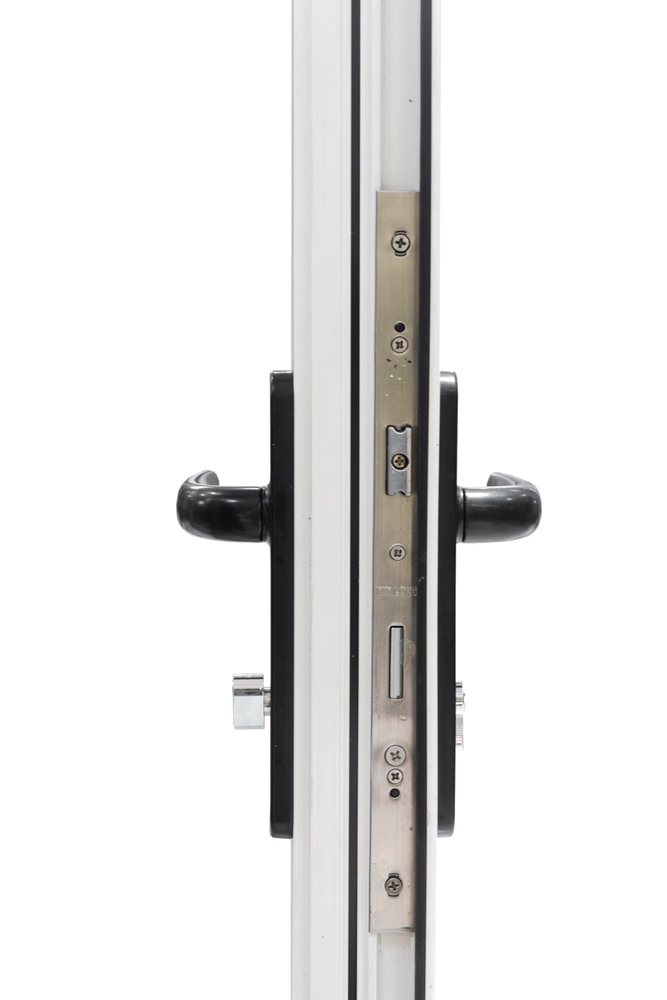

*Multi-point hardware lock system for weather sealing and burglarproofing
*Corner stability is improved and the smooth surface joint is ensured by the corner locking key.
*Glass panel EPDM foam weather sealing strip used for better performance and easier maintenance than standard glue



Surface Treatment: Customized (Powder coated/ Electrophoresis/ Anodizing etc).

Color: Customized (White, black, silver etc any color is available by INTERPON or COLOR BOND).

Aluminium casement door(AL130)



Specifications Of Glass

1. Single Glazing: 4/5/6/8/10/12/15/19mm Etc

2. Double Glazing: 5mm+12a+5mm ,6mm+12a+6mm ,8mm+12a +8mm,can be Sliver Or Black Spacer

3. Laminated Glazing: 3mm+0.38pvb+3mm, 5mm+0.76pvb+5mm, 6mm+1.14pvb+6mm
Tempered ,clear, Tinted, Low-E, Reflective, Forsted.

4. With AS/nzs2208, As/nz1288 Certification



Aluminium casement door(AL130)



Specifications of Screen

1. Stainless Steel 304/316

2. Firber Screen


Aluminium casement door(AL130)


Specifications of Hardware

1.China top Kinlong hardware
2.America CMECH hardware
3.German Hoppe hardware
4.China top PAG Hardware
5.German SIEGENIA hardware
6.German ROTO hardware
7.German GEZE hardware
8.Aluwin choose seriously hardwares&accessories for customers with 10 years warranty

Aluminium casement door(AL130)

Why Choose Us

Customized - We are an aluminium manufacturer with more than 15 years of fruitful and beneficial experience in this field. For your engineer and design requirements, our experts present the most qualified and cost-effective proposals, offering solutions for projects of varied sizes and complexity.


Technical Support -Technical assistance for aluminium curtain walls, including installation instructions and wind load calculations, is provided by independent local and international technology teams.


System design -Create new aluminium window and door systems based on market and client needs, then pair them with top-notch accessories to better satisfy those needs.
