Product Description

* Aluminium frame width 90mm.

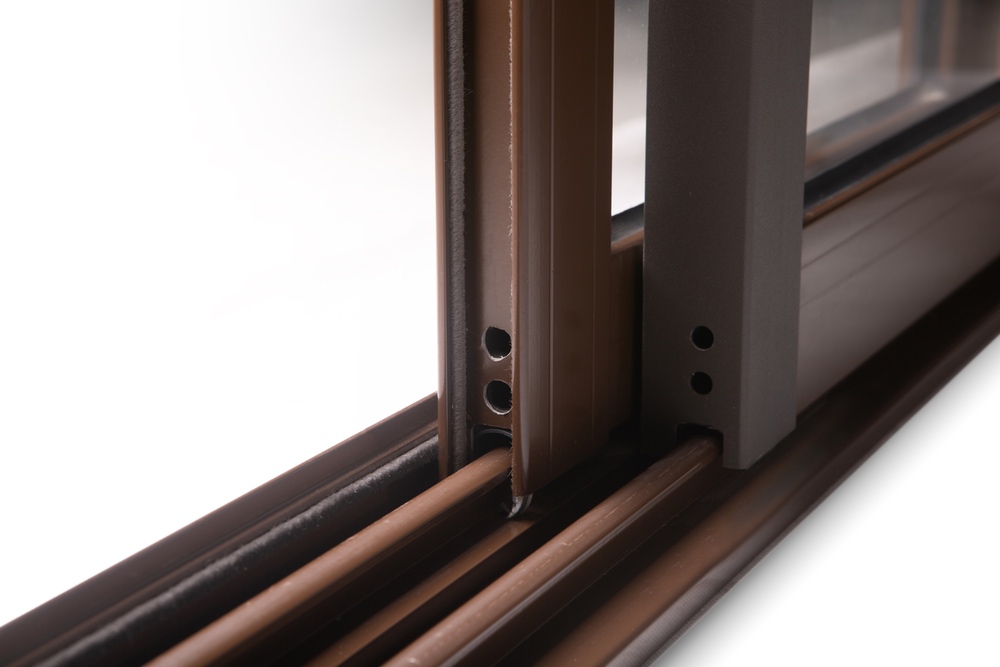

* Two slider tracks with fly-screen tracks,the independent track design makes the sliding smoother.
* higher and lower bottom rail unique design for best water proof. especially in heavy rainy area.
* Available in anodised or powder-coated aluminium in all RAL color.
* Available in standard 6mm glass, toughened glass or laminated safety glass.
* Glass can be tinted in a range of colours.
Optional Features
* With or without grids and colonial bars.
* With or without fiber mosquito screen.

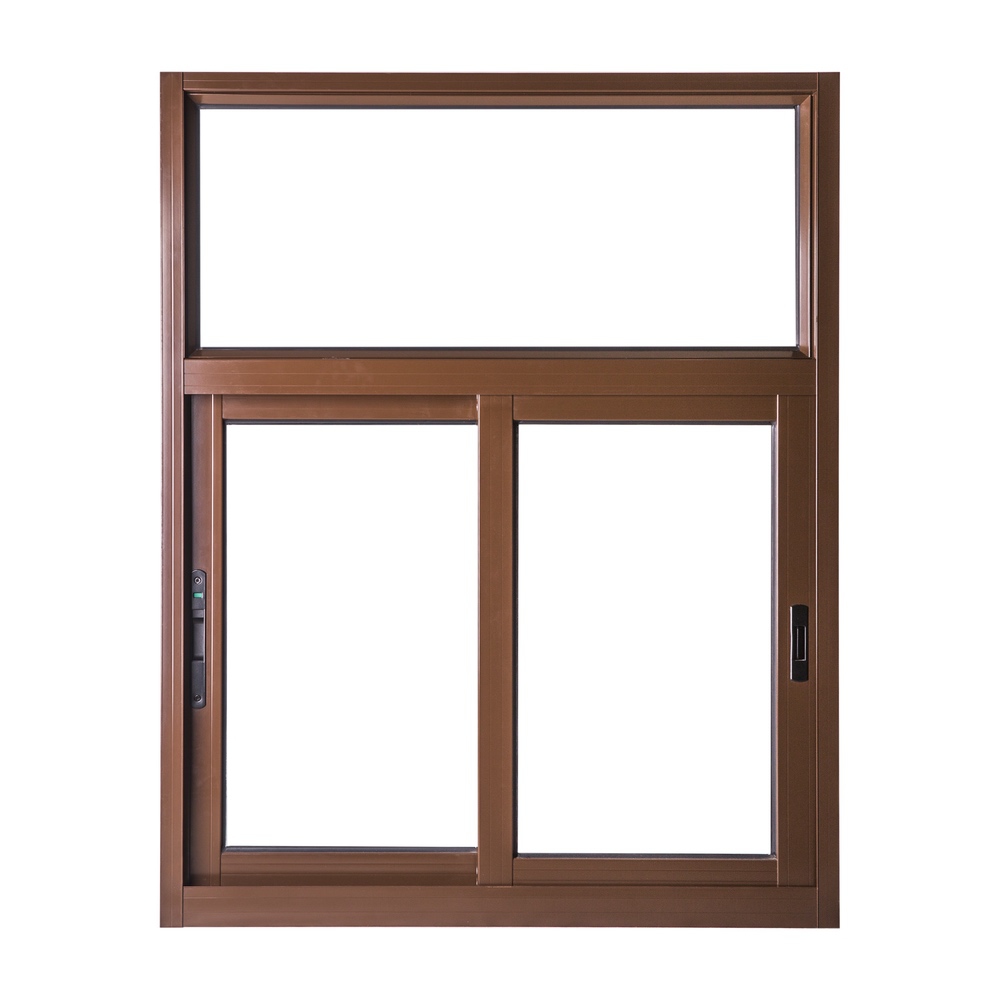

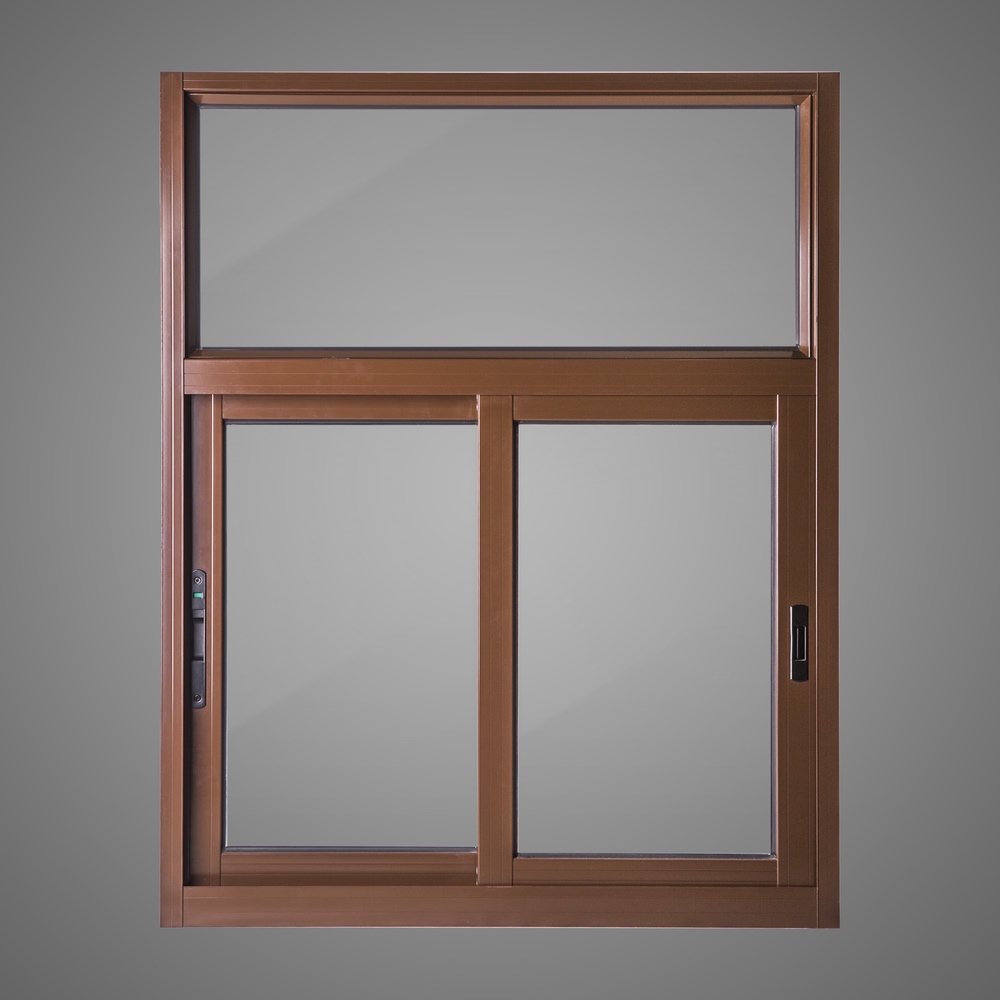

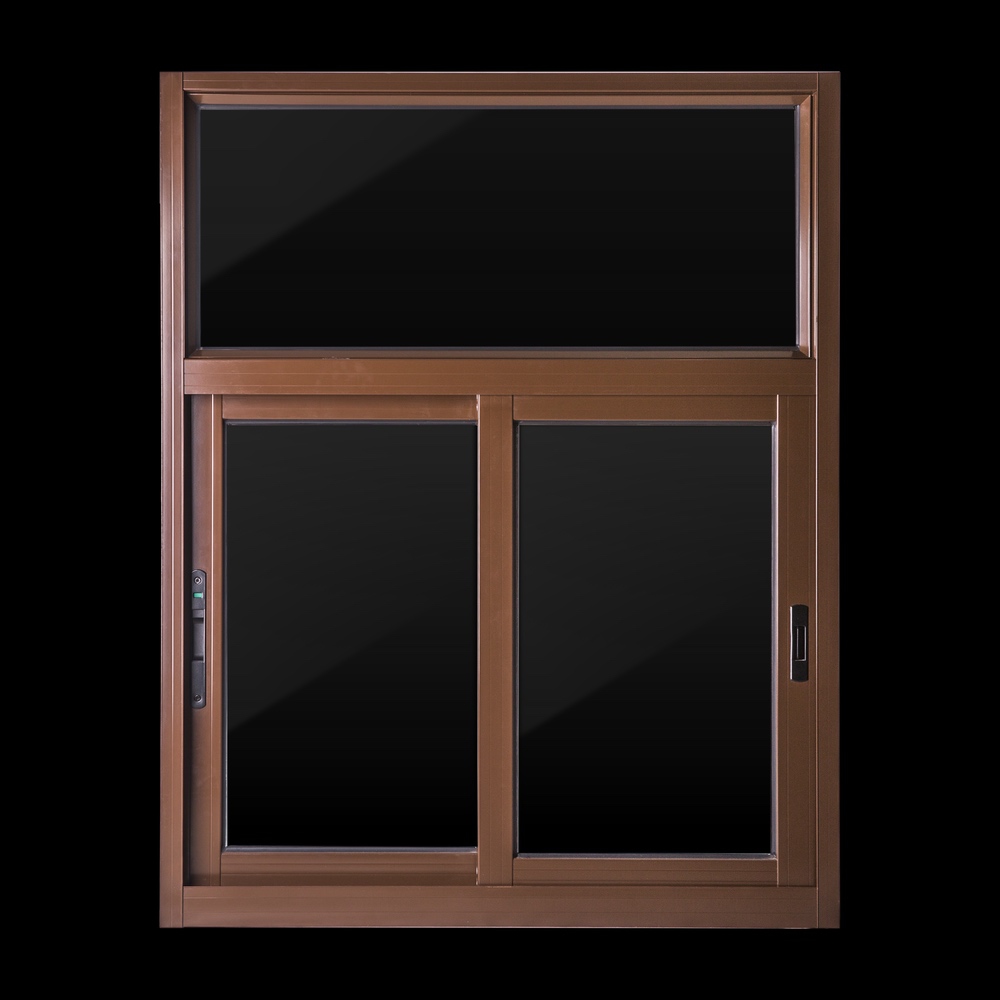

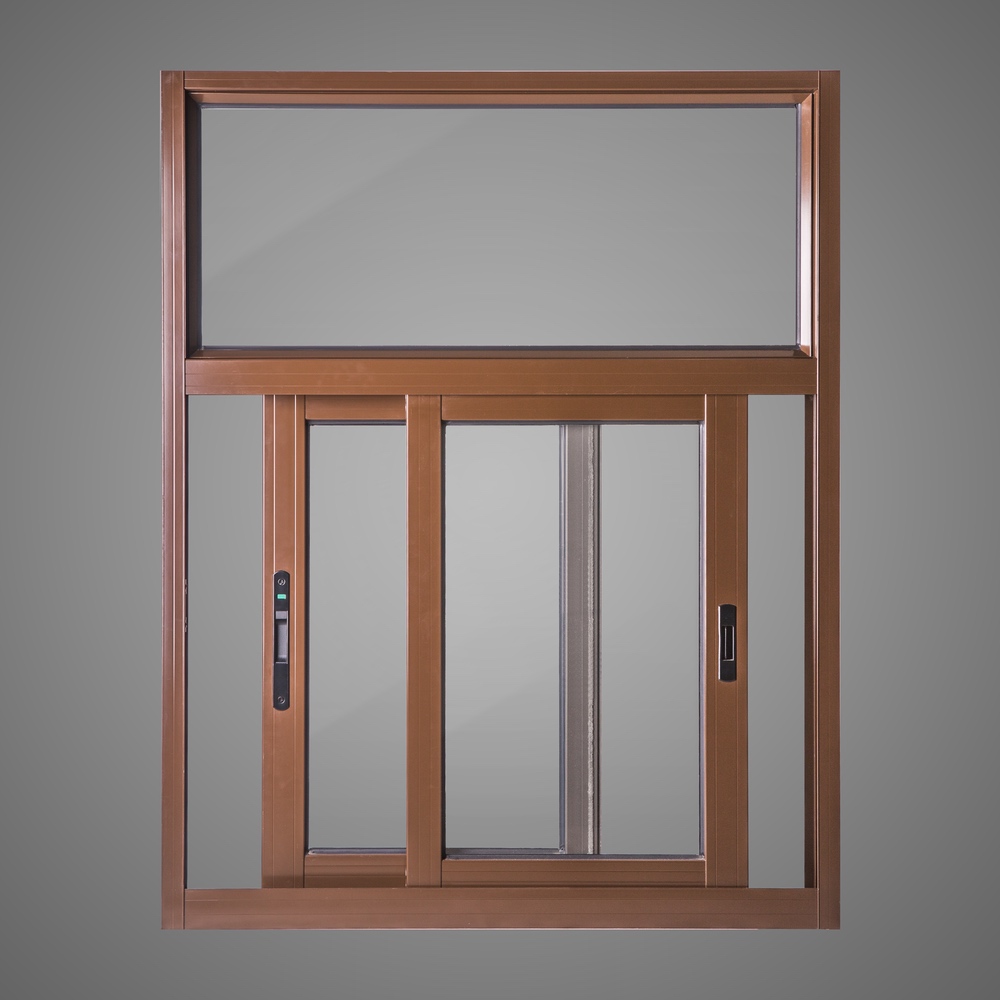

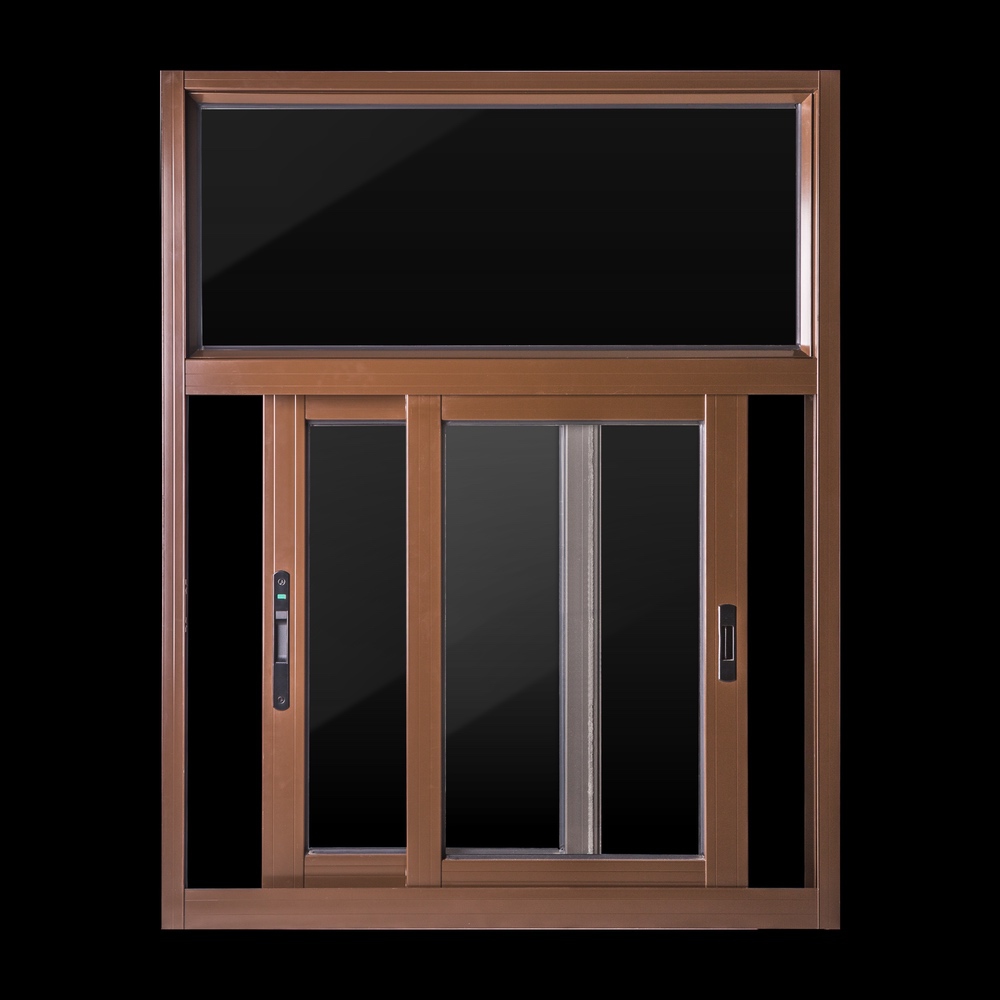

* Configuration can be only one panel sliding or more sliding panels. Also can be with fixed toplight and sidelight panels incorporated.
* Three types lock for choice. Consult for detailed.
* non-thermal system
* horizontal and vertical sliding system for choice.

General description:

Sliding windows are the logical choice if you want a streamlined appearance or if your space does not allow sashes to project outward. They provide houses and corporate buildings with a beautiful yet very useful addition. Sashes in sliding windows can slide left or right or up or down. There are two different types of sliding windows: horizontal sliding windows and vertical sliding

Tech Specs

Product Detail

* Aluminium alloy 6063-T5, high tech profile and renforce material
*High quality glass fiber thermal break insulation bar with high loading capacity
*10-15 years warranty in powdercoating surface treatment

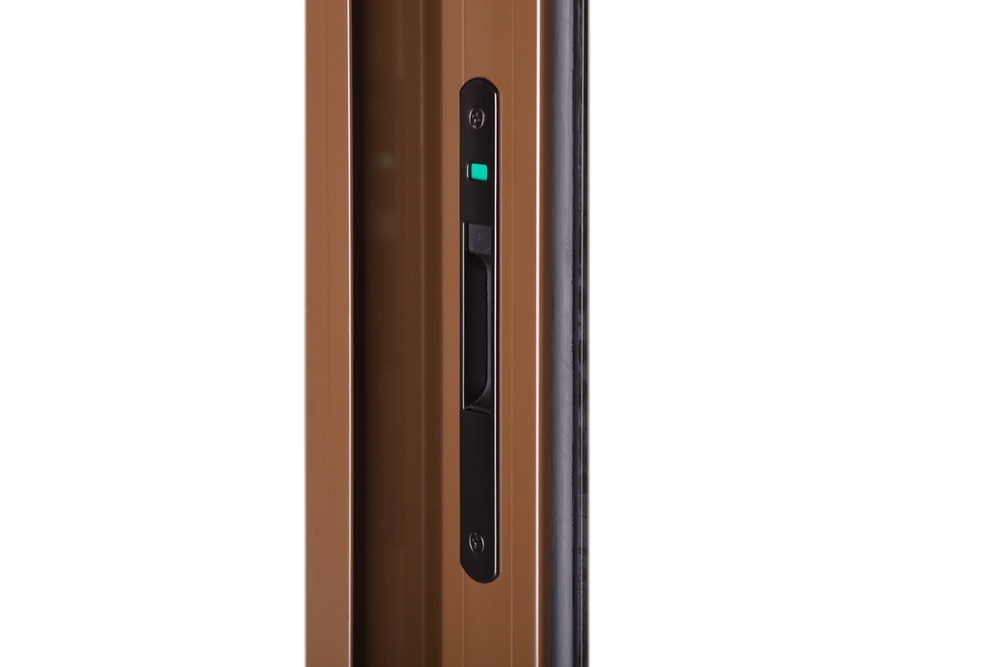

*Multi-point hardware lock system for weather sealing and burglarproofing
*Corner locking key ensures the smooth surface joint and improves corner stability
*Glass panel EPDM foam weather sealing strip used for better performance and easier maintenance than standard glue



Surface Treatment: Customized (Powder coated/ Electrophoresis/ Anodizing etc).

Color: Customized (White, black, silver etc any color is available by INTERPON or COLOR BOND).

Aluminium sliding window(AL2002)



Specifications Of Glass

1. Single Glazing: 4/5/6/8/10/12/15/19mm Etc

2. Double Glazing: 5mm+12a+5mm ,6mm+12a+6mm ,8mm+12a +8mm,can be Sliver Or Black Spacer

3. Laminated Glazing: 3mm+0.38pvb+3mm, 5mm+0.76pvb+5mm, 6mm+1.14pvb+6mm
Tempered ,clear, Tinted, Low-E, Reflective, Forsted.

4. With AS/nzs2208, As/nz1288 Certification



Aluminium sliding window(AL2002)



Specifications of Screen

1. Stainless Steel 304/316

2. Firber Screen


Aluminium sliding window(AL2002)


Specifications of Hardware

1.China top Kinlong hardware
2.America CMECH hardware
3.German Hoppe hardware
4.China top PAG Hardware
5.German SIEGENIA hardware
6.German ROTO hardware
7.German GEZE hardware
8.Aluwin choose seriously hardwares&accessories for customers with 10 years warranty

Aluminium sliding window(AL2002)

Why Choose Us

Customized - we are aluminium manufacturer with over 15 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.


Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.


System design -Based on the clients’ and market’s requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
