Fixed windows have long been a popular choice by home owners and designer for their excellent functionality and value for money. Because of its easy install and operate features,
Fixed window plays an important role for a perfect balcony or any space division.

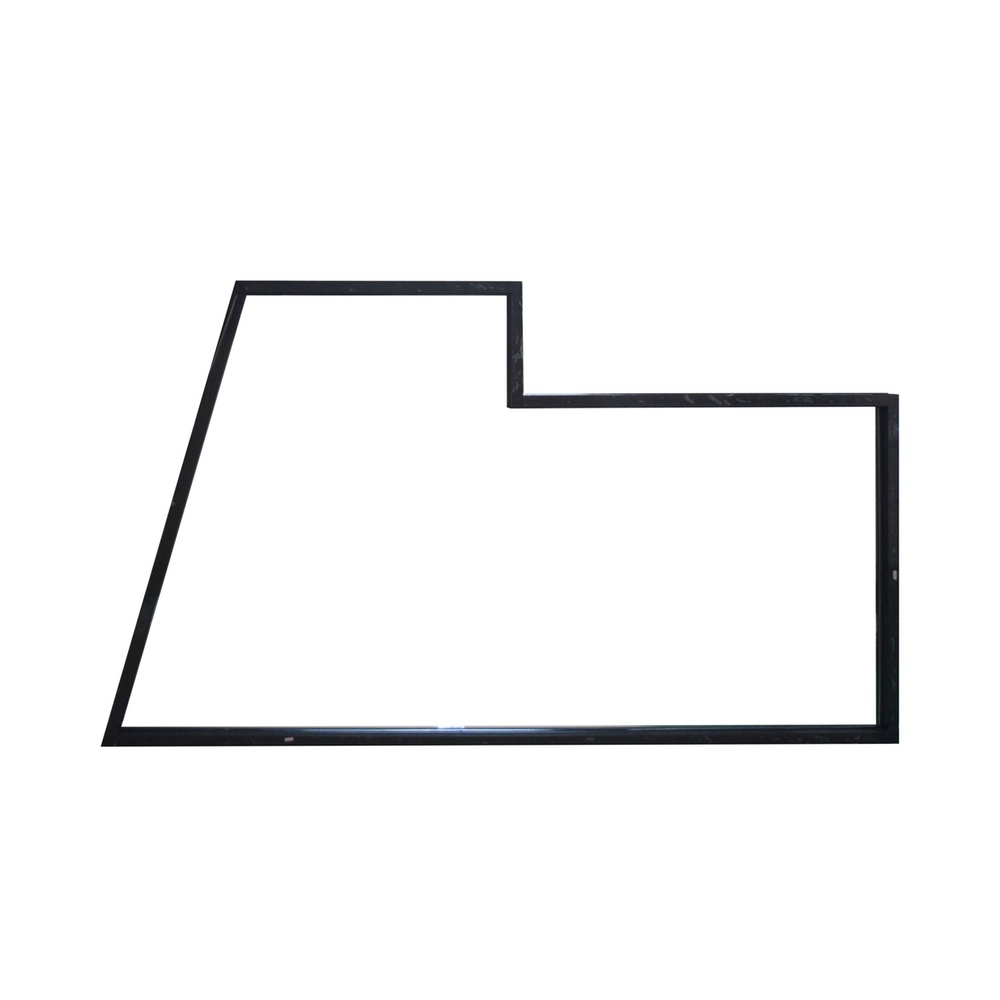

Aluminium fixed glass window
Product Description
* Aluminium frame width 48mm–110mm。 Non-thermal system and thermal break system optional.
* European style 45 degree joint crimping corner instead of adjustable corner make it more elegant and fastened.
* Available in anodised or powder-coated aluminium in all RAL color.
* Available in standard 5mm+9A+5mm double glaze,toughened glass or laminated safety glass.
* Glass can be tinted in a range of colours.
* Different shape and custom sizes also possible.
Optional Features
* Fixed windows permit light to enter while remaining closed to the exterior environment

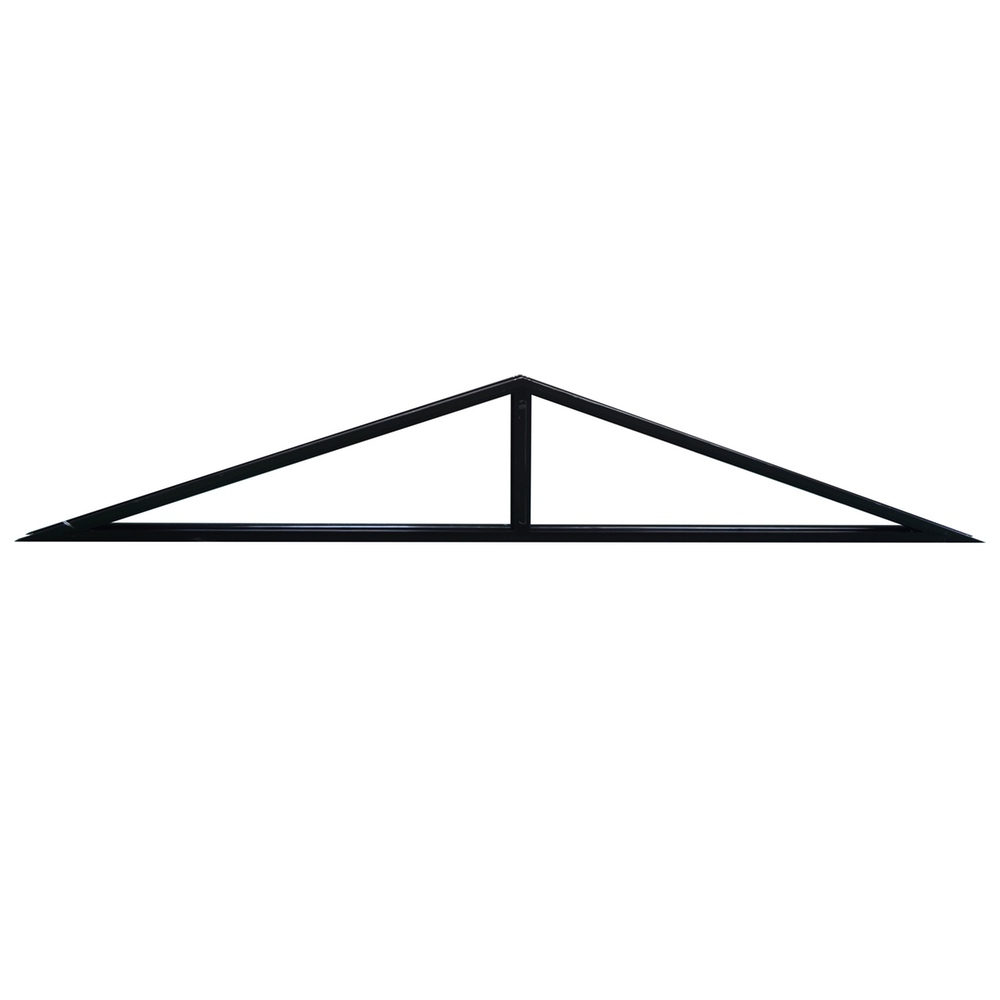

* They can be almost any shape, including square, rectangle, arch, circle, triangle
General description:
Tech Specs
Color
Glass
Srceens
Hardware
Product Detail
* Aluminium alloy 6063-T5, high tech profile and renforce material
*High quality glass fiber thermal break insulation bar with high loading capacity
*10-15 years warranty in powdercoating surface treatment
*Multi-point hardware lock system for weather sealing and burglarproofing

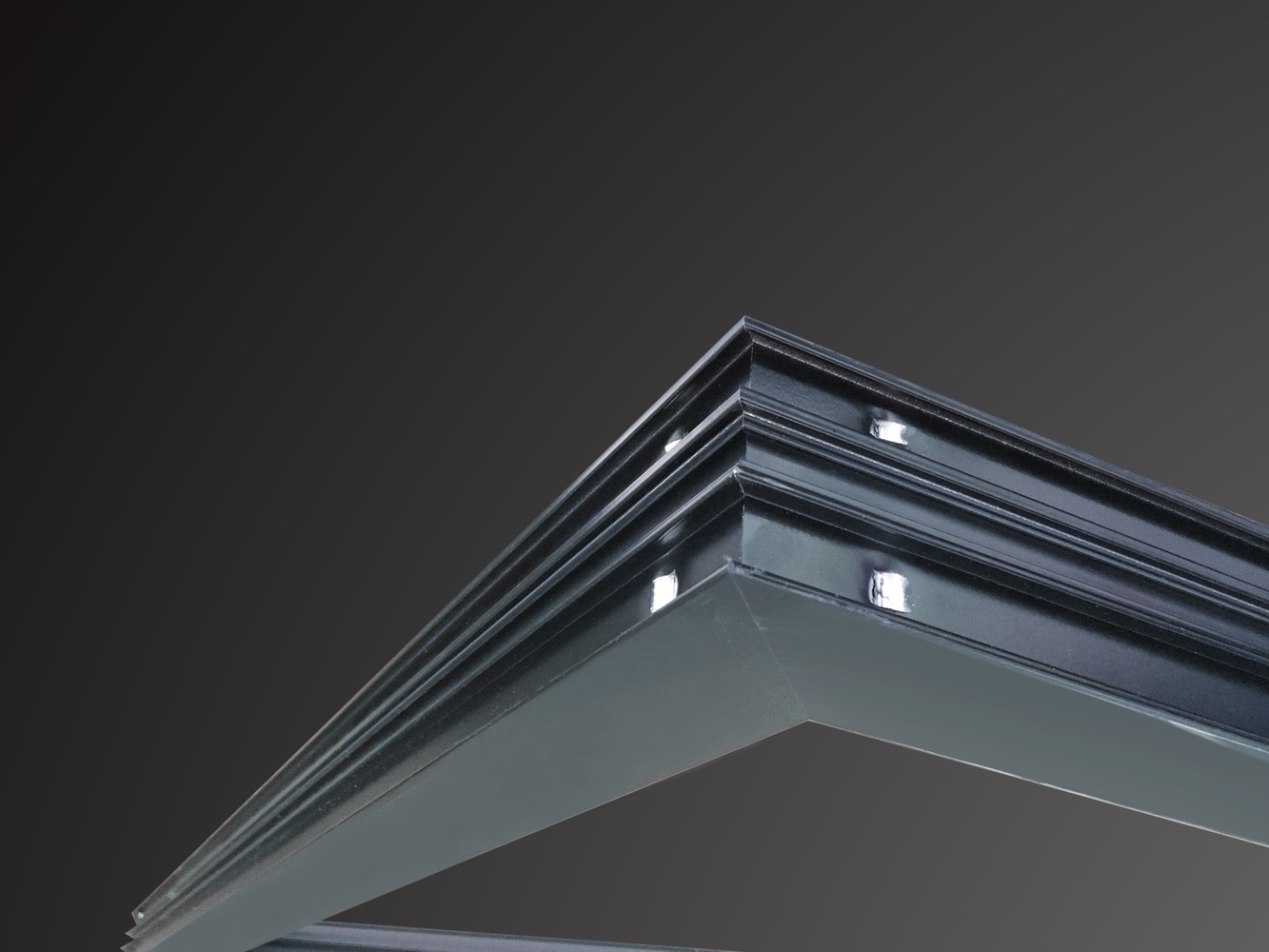

*Corner locking key ensures the smooth surface joint and improves corner stability
*Glass panel EPDM foam weather sealing strip used for better performance and easier maintenance than standard glue
Color
Surface Treatment: Customized (Powder coated/ Electrophoresis/ Anodizing etc).
Color: Customized (White, black, silver etc any color is available by INTERPON or COLOR BOND).

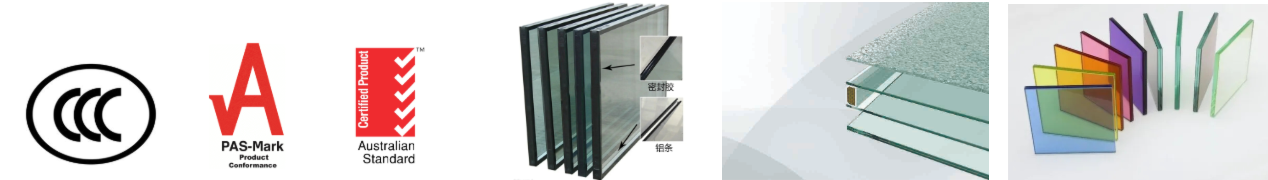

Glass
Specifications Of Glass
1. Single Glazing: 4/5/6/8/10/12/15/19mm Etc
2. Double Glazing: 5mm+12a+5mm ,6mm+12a+6mm ,8mm+12a +8mm,can be Sliver Or Black Spacer
3. Laminated Glazing: 3mm+0.38pvb+3mm, 5mm+0.76pvb+5mm, 6mm+1.14pvb+6mm
Tempered ,clear, Tinted, Low-E, Reflective, Forsted.
4. With AS/nzs2208, As/nz1288 Certification

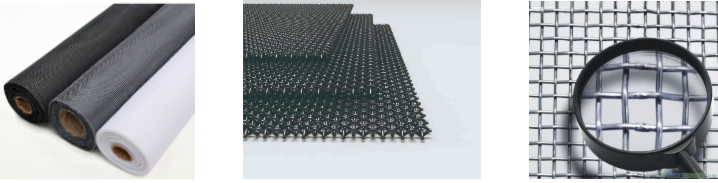

Screen
Specifications of Screen
1. Stainless Steel 304/316
2. Firber Screen
Hardware
Specifications of Hardware
1.China top Kinlong hardware
2.America CMECH hardware
3.German Hoppe hardware
4.China top PAG Hardware
5.German SIEGENIA hardware
6.German ROTO hardware
7.German GEZE hardware
8.Aluwin choose seriously hardwares&accessories for customers with 10 years warranty
Why Choose Us
Customized - we are aluminium manufacturer with over 15 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design -Based on the clients’ and market’s requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
